Xinchen caster wheels specialized in manufacture caster wheels,Our main business scope involved
Medical caster:used as medical bed caster,hospital furniture caster,hospital trolley caster,central More

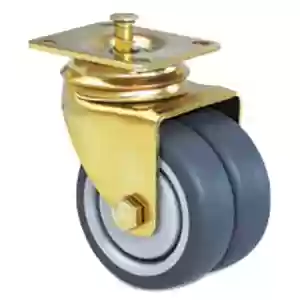

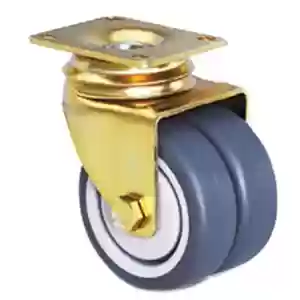

For the research and development of airline service trolley casters in the air transport industry, based on numerous customer needs and long-term experience, we ensured the aircraft meal cart caster wheels safest carrying capacity while taking into account the maximum lightweight, environmental protection and durability performance. The passage on the train or plane is often narrow, so the dining car design must be small. To make it difficult for the dining car to fall over, we use a two-wheel design. The one-step central control brake function greatly reduces the number of flight attendants walking around the narrow lane. Stop the casters one by one.
In particular, when it comes to aircraft use and environmental protection and energy conservation are popular today, we have adopted high-strength, light-weight nylon (PA) materials for aviation fuel economy and environmental protection responsibilities, which greatly meets the requirements of international aviation related documents. Every detail we must be careful to think about it, so that the aircraft meal trolley casters guarantees its distinctive performance.

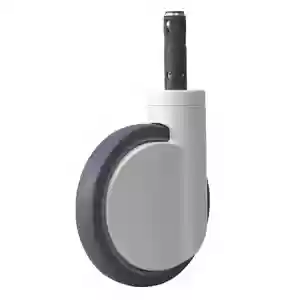

200mm central locking castersare mainly used on emergency stretcher.
According to different bed frame dimension.
* We have two kind of lock stem: Ø32 x 50mm ; Ø28 x 95mm
* Lock cam degree: 30 degree and 45 degree
* Lock function: 2 function,3 function (Free-Free- Total lock & Direction Lock - Free - Total Lock)
* Load weight can reach 180kg for each wheel
* We use mute precision bearing on swivel head and wheel rotate position
* We adopt high quality Steel interior structure + Polyamide wheel frame + Polyurethane Tread to ensure whole wheel durable and impact resistance
If you are use TENTE 8 inch central locking casters you can also use our wheels,same quality but with much competitive price. We can send sample for testing

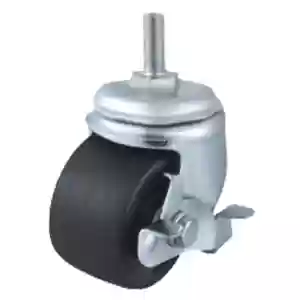

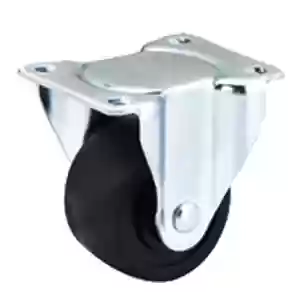

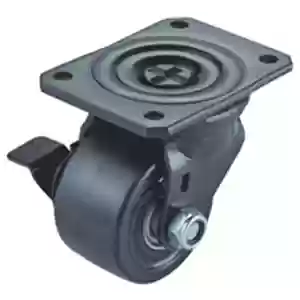

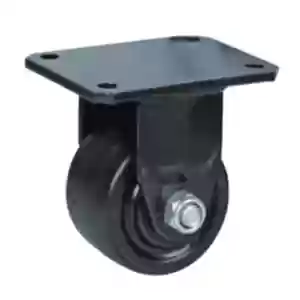

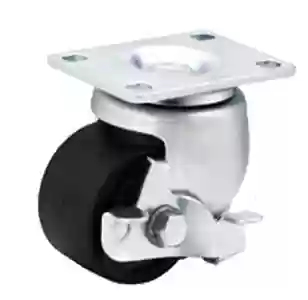

I believe most of people know trolley casters,because we can see they everywhere like,supermarket trolley,hand trolley, dolly.... but few people recognize low profile casters. Here we introduce some knowledge about low profile casters.
Although the Low profile casters in only an accessory of euqipmnet,its play a crucial role on the whole equipment,Because low center of gravity casters can sand in a place with high load for long time keep equipment at low height and movable.
Thus the low profile heavy duty casters is particularly suitable for equipment that does not need move often. When the devices need parked for a long time for some reason but need movable use low center gravity wheels is best choice.
Different company's design are not same. But their feature can be summarized as 2 points.
1.Compare common same size casters the its have lower overall height
2.The wheel more wide than regular casters so can load heavy weight (low installation height make equipment more stable)
Therefor the heavy duty low profile casters are generally known for their heavy load and low installation height. They widely used for mechanical equipment,electric enclosure,refrigerator......
In order to make client select more convenient. Here we list two sheet of specs sheet.Which include both

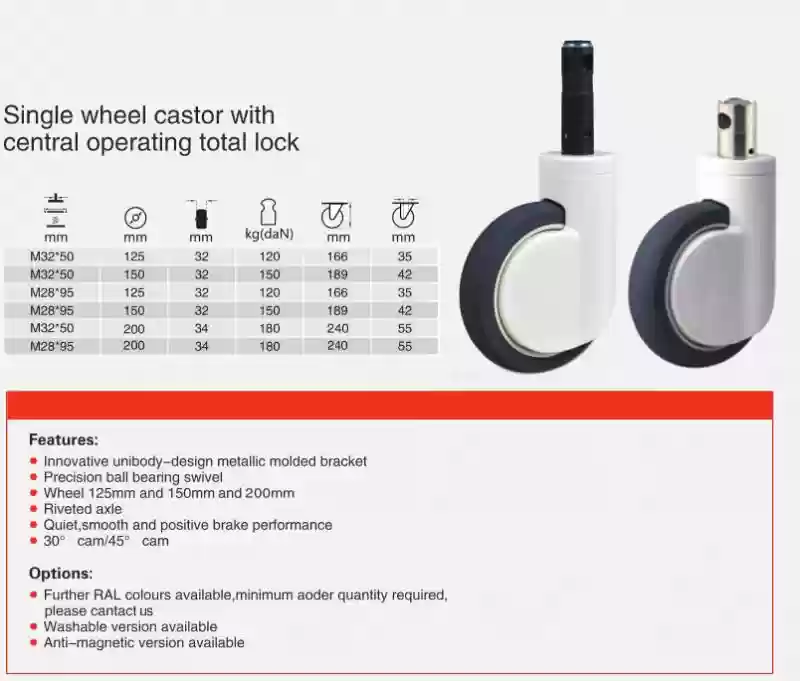

* Single wheel central locking casters---5inch,6inch and 8inch model

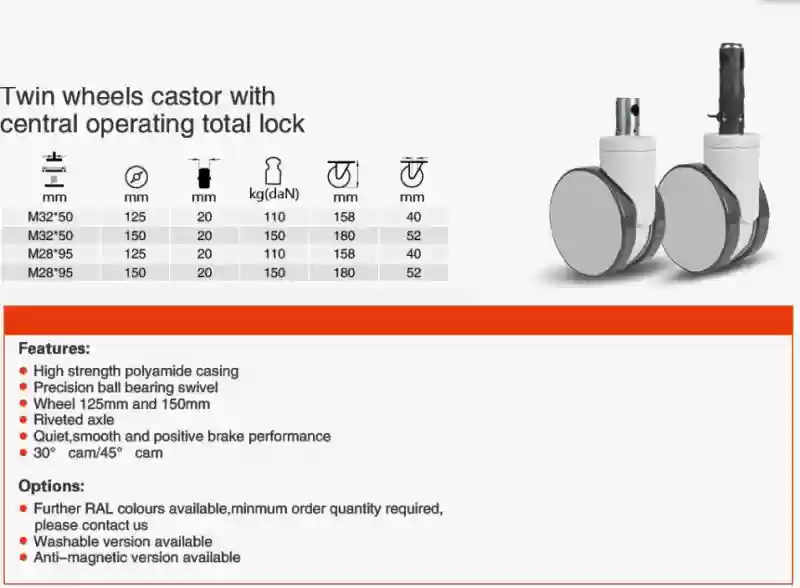

* Twin wheels central brake casters-----5inch and 6inch model
We are being re-design the twin single wheels & dual wheels central lock casters now. Will present our client a better & more fashion products.
And beside of above you also need how to Select Central locking lock casters. Due to lock cam there have 30 degree and 45 degree lock degree. For detail model numer of each type, Please read another instruction " Detail Model Number of Central locking caster wheels"
Any question Or when you need purchase these casters please contact xinchen freely.
